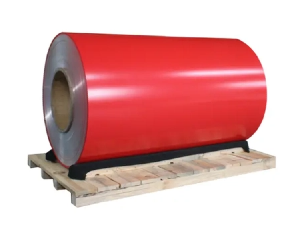

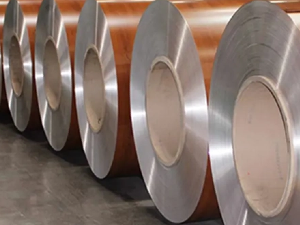

A Coated Aluminium Coil refers to an aluminium strip or sheet that has been surface-treated with protective and decorative coatings. These coatings, often made from polymers such as PVDF, PE, or epoxy resins, provide more than just aesthetics—they serve as a crucial barrier against environmental threats like moisture, oxygen, UV radiation, and chemicals.
Corrosion resistance is one of the most vital properties required for aluminium coils, especially in demanding environments. Aluminium, though naturally corrosion-resistant due to its oxide film, is not immune to degradation. Without additional protection, exposure to saline air, pollutants, acid rain, and industrial atmospheres can cause significant corrosion over time.
Industries such as marine infrastructure, construction (roofing and cladding), transportation (trailers, trains, buses), and even renewable energy require materials that can endure extreme environmental stress while maintaining performance. High-performance Coated Aluminium Coils meet this need through advanced corrosion-resistance mechanisms, which we’ll explore in this article.
Aluminium forms a thin, passive oxide layer (Al₂O₃) naturally when exposed to air. This layer helps prevent further oxidation, giving aluminium its basic corrosion resistance. However, the natural film is extremely thin and vulnerable to breakdown in the presence of chlorides (like salt spray), acidic rain, or in crevices where water gets trapped.
Pitting Corrosion: Localized corrosion that forms tiny holes or "pits" due to breakdown of the oxide layer, often in chloride-rich environments.
Galvanic Corrosion: Occurs when aluminium is in contact with a more noble metal (like copper or steel) in the presence of an electrolyte, creating an electrochemical cell.
Crevice Corrosion: Happens in confined spaces where oxygen is limited, such as underneath fasteners or overlaps.
Filiform Corrosion: A cosmetic form of corrosion that develops under coatings in the form of thread-like filaments, especially in humid environments.
Each of these corrosion types can be mitigated or completely prevented with proper coating systems and surface treatments.
The most important corrosion resistance mechanism in high-performance Coated Aluminium Coils is the application of organic coatings. These coatings serve as both a physical and chemical barrier against aggressive agents.
The primary role of coatings is to prevent the ingress of water, oxygen, and contaminants. By covering the aluminium surface with a continuous film, the risk of corrosion initiation is significantly reduced. The barrier also helps maintain the integrity of the aluminium in highly acidic, alkaline, or saline conditions.
PVDF (Polyvinylidene Fluoride)
Known for its superior weatherability, chemical resistance, and color retention.
Ideal for architectural applications requiring long-term outdoor performance.
PE (Polyester)
Offers good UV stability and is cost-effective.
Commonly used in indoor or moderately aggressive environments.
Epoxy Coatings
High chemical and mechanical resistance.
Often used as primers to enhance adhesion and provide an extra layer of corrosion protection.
High-performance coated coils often use a multi-coat system consisting of:
Pretreatment layer: Enhances adhesion and corrosion resistance.
Primer: Contains corrosion-inhibiting pigments and improves bond with the topcoat.
Topcoat: Provides weather resistance, UV protection, and color.
Clear coat (optional): Adds gloss and extra durability.
These systems work together to block corrosive agents from reaching the aluminium surface.
Proper surface preparation is critical to ensuring long-lasting corrosion protection.
Conversion coatings chemically modify the aluminium surface to enhance adhesion and corrosion resistance. Modern coatings avoid hexavalent chromium and instead use chrome-free alternatives like:
Zirconium-based treatments
Titanium conversion coatings
Silane coatings
These treatments form an inert layer that protects the metal and serves as an anchor for subsequent layers.
Though less common in coil processing, anodizing increases corrosion and wear resistance by thickening the natural oxide layer. It can also improve paint adhesion when used as a base layer.
Before coating, aluminium surfaces must be free from oil, oxides, and dirt. Degreasing, etching, and brushing are typical processes used to achieve a clean, uniform surface. Some production lines include mechanical or chemical roughening to enhance bonding.
In recent years, innovations in coating technologies have dramatically enhanced the corrosion resistance of coated aluminium coils, making them increasingly reliable for demanding applications in outdoor and industrial environments. These advancements focus on creating more durable, protective layers that extend the lifespan of aluminium products while maintaining their aesthetic appeal.
One of the most significant breakthroughs in corrosion protection involves nano-structured coatings. These coatings utilize extremely small particles to form dense, uniform, and pinhole-free layers on the aluminium surface. This ultra-thin yet highly effective barrier prevents even the smallest water molecules or oxygen particles from penetrating, drastically reducing corrosion risk. Additionally, smart coatings are being developed to incorporate self-healing capabilities. When scratches or micro-cracks occur, these coatings release corrosion inhibitors or healing agents that repair the damage autonomously. This technology helps maintain the integrity of coated aluminium coils over time, reducing maintenance needs and enhancing durability.
Modern primers used in coated aluminium coils are formulated with advanced corrosion inhibitors such as zinc phosphate, molybdate, and various organic compounds. These inhibitors chemically react with corrosive agents, forming stable, passive compounds on the metal surface. This reaction effectively halts or significantly slows down the corrosion process by creating a protective chemical barrier, preventing further degradation of the aluminium substrate beneath the coating.
Ultraviolet (UV) radiation is another critical factor that accelerates the deterioration of coated aluminium coils. UV rays not only cause color fading but also break down the polymer bonds within the coatings over time, weakening their protective properties. To combat this, coatings now incorporate UV stabilizers and absorbers that shield the polymer matrix from harmful radiation. By preserving the coating’s integrity, these additives indirectly protect the aluminium from environmental exposure and corrosion.
To ensure coated aluminium coils perform as expected, a range of standardized corrosion tests are conducted:
Simulates long-term exposure to salt-rich environments. The test chamber sprays a fine mist of saltwater, and the sample is evaluated over time for signs of corrosion, blistering, or delamination.
Measures the resistance of coating layers to ionic current, giving insights into coating integrity and protective performance.
QUV Testing: UV exposure + moisture cycles
Xenon Arc Testing: Full-spectrum light to simulate natural sunlight
These tests reveal how coatings age over time under environmental stress.
Field tests in marine environments, industrial zones, or desert climates validate lab results and offer real-world data on coating longevity.
When selecting materials for corrosion resistance, it's useful to compare Coated Aluminium Coil with other options:
Stainless steel offers high corrosion resistance but is heavier and more expensive.
Aluminium is lighter and easier to process for large panels or coils.
Galvanized steel may suffer from edge corrosion or white rust.
Coated aluminium offers more consistent protection across the entire surface.
Anodizing is highly corrosion-resistant but lacks the color variety and flexibility of coatings.
Coated coils offer both performance and customization.
Though high-performance coatings may increase upfront cost, they often reduce maintenance, repairs, and early replacement, offering better lifecycle economics.
Corrosion poses a major challenge to the durability and appearance of metal products, especially in harsh outdoor and industrial environments. Coated aluminium coils, combining advanced barrier coatings, pretreatment technologies, and innovative materials, provide outstanding long-term corrosion protection while maintaining excellent aesthetic and functional qualities. For manufacturers and designers seeking durable, low-maintenance, and sustainable solutions, high-performance coated aluminium coils are an ideal choice. With ongoing advancements in nano-coatings, self-healing layers, and eco-friendly processes, the corrosion resistance of these products continues to improve. To explore cutting-edge coated aluminium solutions that balance performance, cost, environmental impact, and design flexibility, we recommend contacting Guangdong Guangyun New Material Co., Ltd. Their expertise and innovative products can help you find the perfect material to meet your project’s demands.
